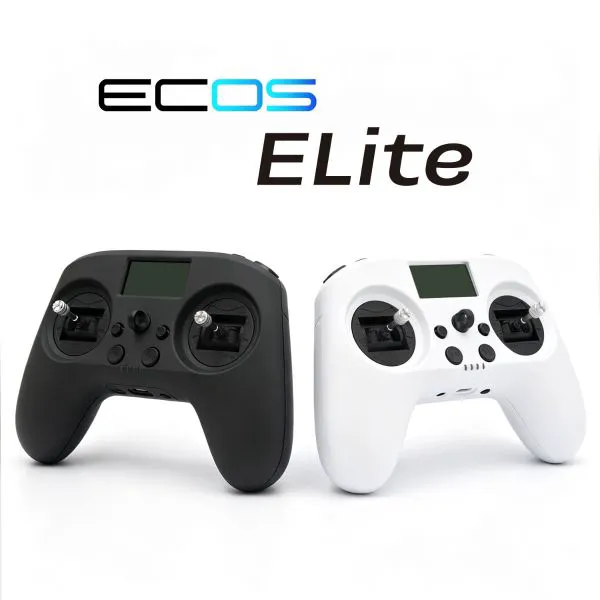

FrSky ECOS E Lite

Simplified Power with ECOS
The ELite is the first FrSky radio to feature the all-new ECOS operating system. It’s designed to provide a more intuitive learning curve and a faster, streamlined setup. While ECOS inherits the powerful look and feel of ETHOS, it achieves a significant level of simplification. This allows users new to RC – across various application scenarios to enjoy a complete and user-friendly experience while keeping both budget and the learning curve to a minimum.

Robust Connectivity & Wide Expansion Options
The ELite integrates a powerful 2.4GHz internal RF module, enabling direct pairing with ACCST D16 or ACCESS receivers. This ensures reliable, low-latency control performance right out of the box.

Portable Design & Versatile Options
Built to be lightweight and portable, the ELite introduces an innovative attachable and foldable rear design. Combined with a comprehensive array of hardware inputs, including multi-position switches and momentary buttons, the ELite fully meets the requirements of fundamental flight scenarios while offering broad expandability.

FEATURES

• Integrated ECOS operating system with built-in 2 .4G ISRM internal RF module
  Supports ACCST D16/ACCESS protocols
   -Low-latency (＜4ms) supporting full telemetry
   -Less latency capability with high reliability at a faster data rate
•  Ergonomic and compact lightweight design with game controller-type grip design
• Top switch buttons within easy reach
• 128×64 resolution backlit monochrome display
• 2×5D joystick navigation buttons & M1/M2 function buttons
• 2×3-position switches, 1×latching button, and 1×momentary switch
• Equipped with potentiometer gimbals
• LED indicator system shows battery status
• 4000mAh 1S Li-ion battery for long operating time
• Supports USB Type-C charging
• Supports wired training system via DSC port

SPECIFICATIONS

• Dimension: 170.4×122.6×70.4mm (L×W×H)
• Weight: 255g (Battery Incl.)
• Operating System: ECOS
• Internal RF Module: ISRM-L
• Screen Resolution: 128×64
• Number of Channels: Up to 24 Channels
• Operating Voltage Range: 3.3V ~ 4.2V (1S Li-Battery)
• Operating Current: [email protected] (typ.)
• Operating Temperature: -10℃ ~ 60℃ (14℉~140℉)
• Battery Bay Size: 65×40×11.6mm (L×W×H)
• USB Adaptor Voltage and Current: 5V+0.2V, ≥2.0A
• Compatibility: ACCST D16 / ACCESS
