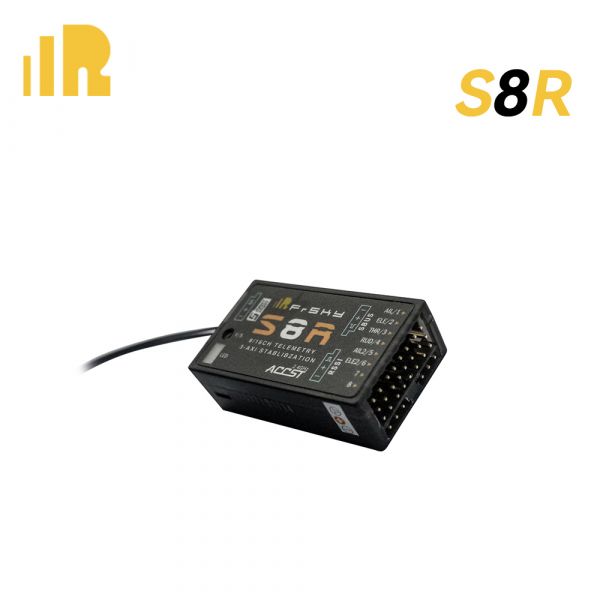

 FrSky S8R X-Series Receiver with 3-Axis Stabilization

Click on above image to view full picture

More Views

FrSky S8R X-Series Receiver with 3-Axis Stabilization

SKU: S8R

Reward Points You will earn 100 Points for writing a review this product.

In stock ( 0 Pcs)

Regular Price: $39.00

Special Price $33.99

* Required Fields

Regular Price: $39.00

Special Price $33.99

Details

The S8R is a FrSky X-series receiver with built in 3-axis stabilization. For conventional Fixed Wing and Glider Models it will support stabilization, automatic level, hover and Knife-edge flight modes, for Delta Wings or flying wings and V-tail models it supports stabilization and automatic level flight modes. You can edit the type of model and manipulate all these features via the S8R.Config or S8R.lua. The S8R can also be used as a standard 8 channel X series receiver if it is required.

Tip: Use the S8R with 3-axis stabilization as a slave receiver with the RB-10 to give you that extra peace of mind by buying you precious time to bring your model home.

Specification

  •   Dimension: 46.47×26.78×14.12 mm (L×W×H)
  •   Weight: 14g
  •   Number of Channels: 8/16CH (1-8ch from conventional channel outputs, 1-16ch from SBUS output)
  •   With RSSI PWM output on board: PWM voltage output(0-3.3V), 100Hz, 1500±500us
  •   Operating Current: 120mA@5V
  •   Operating Voltage Range: 4.0-10V
  •   Operating Range: full range
  •   Gyroscope Measurement Range: ±2000dps
  •   Accelerometer Measurement Range: ±4g
  •   Firmware Upgradeable
  •   Compatibility: FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16 mode

(PS: S8R-EU only works with FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16-EU mode)

Features:

  •   Built-in 3-axis gyroscope and 3-axis accelerometer sensor module
  •   Built-in RSSI PWM output(0-3.3V)
  •   Built-in battery voltage detection
  •   Smart Port enabled
  •   SBUS Port enabled

Reviews

Customer Reviews

Excellent receiver Review by Jeff
Quality
Value
Price
It's an excellent receiver, it works flawlessly with my Taranis X9D on Open TX 2.1.9.
When using the stabilization it works as an 8 channel receiver, but will use 12 channels internally to access the different settings and modes from the transmitter. Because of that, don't forget to bind the receiver in D16 mode with at least 12 channels active, or it will not work.
The stabilization system works well but can be somewhat tricky to setup. the Frsky manual is a bit short about the settings and I strongly recommend to read the RC Group thread dedicated to this receiver.
The FrSky STK Tool (https://www.horusrc.com/en/frsky-stk.html) is also needed to configure this receiver and eventually upgrade its firmware. (Posted on 5/9/2017)
Excellent receiver Review by Jeff
Quality
Value
Price
It's an excellent receiver, it works flawlessly with my Taranis X9D on Open TX 2.1.9.
When using the stabilization it works as an 8 channel receiver, but will use 12 channels internally to access the different settings and modes from the transmitter. Because of that, don't forget to bind the receiver in D16 mode with at least 12 channels active, or it will not work.
The stabilization system works well but can be somewhat tricky to setup. the Frsky manual is a bit short about the settings and I strongly recommend to read the RC Group thread dedicated to this receiver.
The FrSky STK Tool (https://www.horusrc.com/en/frsky-stk.html) is also needed to configure this receiver and eventually upgrade its firmware. (Posted on 5/9/2017)
