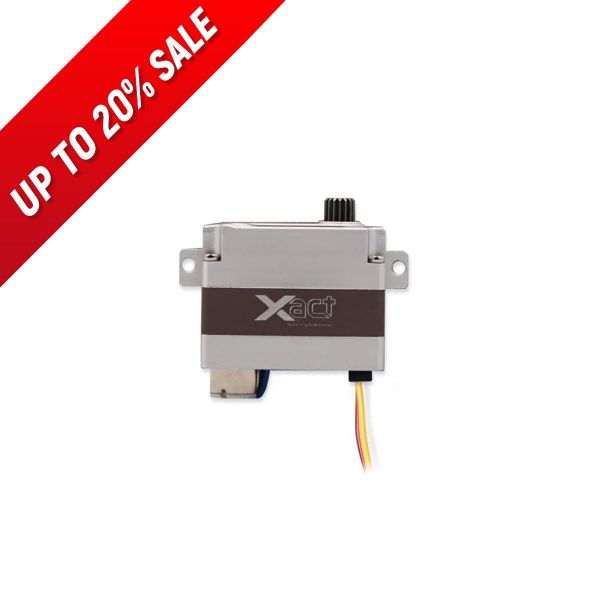

FrSky Xact Series WING HV 8.4V Capable Servos HV5611/HV5612

FrSky Xact Series WING HV 8.4V Capable Servos HV5611/HV5612

Click on above image to view full picture

FrSky Xact Series WING HV 8.4V Capable Servos HV5611/HV5612

$44.99

Availability: Out of stock

Stock Notification
Email
  Notify me when this product is back in stock


The Xact series coreless servos utilize all CNC machined aluminum protective case and metal gears, these servos are 8.4V high voltage capable and offer high speed and configurable torque performance. Also, the Xact series servos offer multiple form factors and configurations to fit for different model types and precision usage.

Working with the F.Port 2.0 protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either F.Port 2.0 capable receiver or flight controller. All the preset servo options of speed and torque can be configured directly on an ACCESS radio through the host device of F.Port 2.0 line, and the configurable servo steering as well as travel degree are additions now can be expected on this series.

HV5611

FEATURES

  • Supports F.Port 2.0, SBUS and PWM protocol
  • High durability with metal gear and all-aluminum CNC machined protective case
  • 8.4V high voltage capable operation with good speed performance
  • Built-in dual precision balls bearing with potentiometer sensor
  • Supports over-current and over-hot monitor and alarm
  • Updatable firmware ensures the performance superior

SPECIFICATIONS

  • Torque @ 3.7v – 1.40 kgf.cm / 19.4 Oz-in
  • Torque @ 4.2v – 1.90 kgf.cm / 26.4 Oz-in
  • Torque @ 8.4v – 4.1 kgf.cm / 56.9 Oz-in
  • Speed @ 3.7v – 0.11 sec/60°
  • Speed @ 4.2v – 0.10 sec/60°
  • Speed @ 8.4v – 0.05 sec/60°
  • Dimensions: 19*8*23mm (L*W*H)
  • Weight: 8.8g
  • Motor Type: Coreless
  • Servo Horn Spline: Φ4 15T
  • Operating Voltage Range: 3.7-8.4V
  • Max Refresh Rate: 333Hz

HV5612

FEATURES

  • Supports F.Port 2.0, SBUS and PWM protocol
  • High durability with metal gear and all-aluminum CNC machined protective case
  • 8.4V high voltage capable operation with good speed performance
  • Built-in dual precision balls bearing with potentiometer sensor
  • Supports over-current and over-hot monitor and alarm
  • Updatable firmware ensures the performance superior

SPECIFICATIONS

  • Torque @ 3.7v – 1.40 kgf.cm / 19.4 Oz-in
  • Torque @ 4.2v – 1.90 kgf.cm / 26.4 Oz-in
  • Torque @ 8.4v – 4.1 kgf.cm / 56.9 Oz-in
  • Speed @ 3.7v – 0.11 sec/60°
  • Speed @ 4.2v – 0.10 sec/60°
  • Speed @ 8.4v – 0.05 sec/60°
  • Dimensions: 19*8*23mm (L*W*H)
  • Weight: 8.8g
  • Motor Type: Coreless
  • Servo Horn Spline: Φ4 15T
  • Operating Voltage Range: 3.7-8.4V
  • Max Refresh Rate: 333Hz
Type Model Dimension
(mm)
Weight
(g)
Max
Refresh
Rate
Motor Torque/Speed
(kgf·cm)/(sec/60°) @8.4V
Torque/Speed
(kgf·cm)/(sec/60°)
@4.2V
Torque/Speed
(kgf·cm)/(sec/60°)
@3.7V
Stall Torque
(gf·cm)
Teeth Sensor Protocol
WING HV5611 19*8*23 8.8 333Hz Coreless 4.1 / 0.05 1.90 / 0.10 1.40 / 0.11   Φ4 15T Potentiometer
F.PORT 2.0
SBUS
PWM
HV5612 19*8*23 8.8 333Hz Coreless 4.1 / 0.05 1.90 / 0.10 1.40 / 0.11
Type Model Dimension
(mm)
Weight
(g)
Max
Refresh
Rate
Motor Torque/Speed
(kgf·cm)/(sec/60°) @8.4V
Torque/Speed
(kgf·cm)/(sec/60°)
@7.0V
Torque/Speed
(kgf·cm)/(sec/60°)
@6.0V
Stall Torque
(gf·cm)
Teeth Sensor Protocol
WING HV5101 28*8*29 18 333Hz Coreless 6.8 / 0.10  5.8 / 0.13 4.9 / 0.16 46 Φ4 16T Hall Sensor F.PORT 2.0



SBUS

PWM

MICRO HV5201 23*12*29 23 4.2 / 0.04 3.5 / 0.05 3.0 / 0.06 39 Φ5 25T
HV5202  4.8 / 0.06 4.0 / 0.07  3.5 / 0.08
HV5203 8.2 / 0.08 6.8 / 0.09  5.9 / 0.11
MIDI HV5301 35*15*31 41 6.1 / 0.08  5.2 / 0.09 4.4 / 0.11 55 Φ6 25T
STD HV5401 40*20*39 72 8.7 / 0.04  7.2 / 0.05  6.2 / 0.06 163
HV5402 14.8 / 0.08  12.5 / 0.10 11.0 / 0.12
HV5403  26.2 / 0.11 22.0 / 0.12 18.8 / 0.15
HV5404 32.0 / 0.13 26.8 / 0.14 22.9 / 0.17
HV5405 36.8 / 0.19 30.8 / 0.23 26.4 / 0.29
LOW HV5501 41*20*27 58 19.3 / 0.11  16.1 / 0.13  13.8 / 0.15 125
HV5502 11.2 / 0.07 9.8 / 0.08  8.0 / 0.10
