HDZero Freestyle V2 without ANTENNA

$99.99
Availability: In stock
SKU
01180511


Description:

The HDZero Freestyle V2 without ANTENNA is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Byte goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.



The VTX includes a U.FL RHCP antenna. The power input range is 2S –6S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.



Specifications:

Manual download

  • Model: HDZero Freestyle
  • Frequency: 5.725-5.850GHz
  • Resolution Default: 1280*720@60fps RF
  • power: 25mw/200mw/500mw/1000mw RF
  • Connector: Secured U.FL Video
  • Connector: Secured MIPI FC protocol MSP Canvas Mode/SmartAudio
  • Size: 40mm x 42mm x 10mm
  • Weight: 28g
  • Power:   6-15W
  • Power input: 7V-26V(2S-6S)
  • Mounting: 30.5mm x 30.5mm M3 holes

Important Notes:

  • The Freestyle VTX consumes up to 15W. If it is connected with FC, make sure the FC has enough current. For example, if the FC has 10V, it needs a minimum of 1.5A current output.
  • Removing the heat sink is not recommended because it is part of the design.

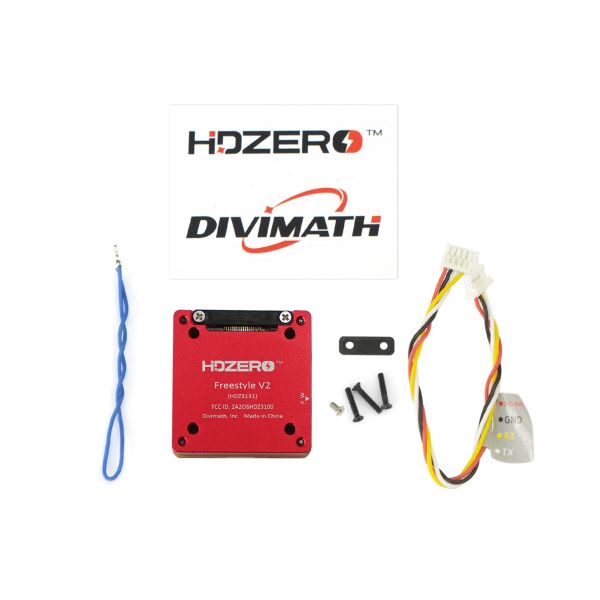

Package Included:

  • 1 x HDZero Freestyle V2 without ANTENNA
