Utilizing the SBUS system in your aircraft can help you reduce the amount of wiring in your model and even save you a little bit of weight to boot. Imagine a full house glider wing with six servos that only needs a 3 pin(+ - /signal) electrical connection per wing. Pretty neat right. That is the advantage of SBUS servos. It works like this. Each of the servos are connected to same signal wire which is in turn connected to the SBUS output on the receiver. That signal wire contains all the information needed to control every servo in the plane. The servos then read the SBUS line and respond only to the signals that have been addressed specifically to them.

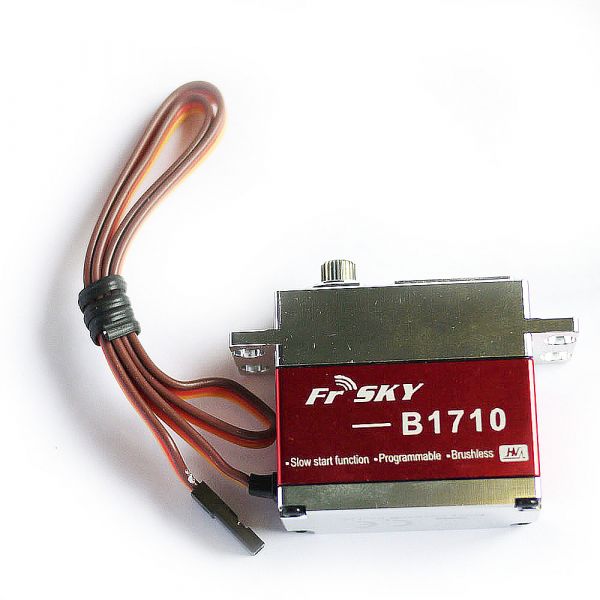

The servo construction is very good, machined aluminium cases, metal gears, ball bearing outputs, coreless motors and of course they are digital. However they can also be used as a standard servo utilizing PWM / PPM
|Operating Voltage Range||
4.5V ~ 8.5V
SBUS/SBUS II Mode , PWM Mode , PPM Mode
21kg.cm @ 8.4V , 18kg.cm @ 7.4V , 16kg.cm @ 6.0V
0.06sec/60°@ 8.4V , 0.075sec/60°@ 7.4V , 0.083sec/60°@ 6.0V
800us ~ 2200us
