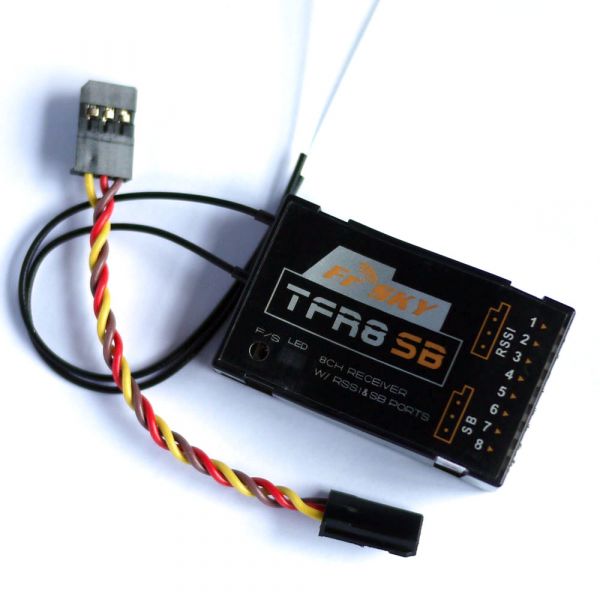

FrSky TFR8SB 8/16CH FASST Compatible Receiver With RSSI&SBUS

The TFR8SB Compatible with FASST 2.4GHz Air Systems (7CH Mode/Multi Mode) & Surface Systems (C1 Mode)

SB port - No receiver channel limitations except what your transmitter is capable to sending. Also prevents mismatched servo channel connections.Two selectable failsafe options - Use transmitter failsafe, or receiver failsafe.Improved sensitivity and stability.Wider and higher operating temperature range, suitable for all kinds of models.

Features:

• Compatible with FASST 2.4GHz Air Systems (7CH Mode/Multi Mode) & Surface Systems (C1 Mode)
• SB port is compatible with Futaba S.BUS servos and FrSky servo D12MB. No receiver channel
• Limits (except by those on your transmitter) and prevent mismatched servo-channel connections
• With RSSI output
• Two selectable failsafe setting options (use native failsafe on radio side or set failsafe on TFR8SB side)
• S.BUS servos/S.BUS compatible servos channel setting on TFR8SB
• Improved sensitivity and stability
• Wider and higher operating temperature range, suitable for all kinds of models
• Firmware upgradeable

Specifications:

• Number of Channels: 16
• Dimension: 44.5 x 27.5 x 17mm
• Weight: 11.5g
• Operating VoltageRange: 3.5V~10V
• Operating TemperatureRange: -10°C~60°C

Compatibility:

• FASST 2.4GHz Air Systems (7CH Mode/Multi Mode): 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG,
• T12Z, T12FG, TM-14, T14MZ, etc.
• FASST 2.4G Surface Systems (C1 Mode): 3PK, 4PK, etc.
• Futaba S.BUS servos, FrSky servo D12MB

What's in the Box:

• 1 x TFR8SB
• 1x Data wire
• 1 x Manual
